Visit shared settings of myCADtools will enable you to create parameter contexts and switch from one context to another quickly and easily, without having to manually modify the options in each tool. A settings context is a file containing all your myCADtools options. You can create as many as you like!


For example, you can create a context corresponding to a customer A which uses a parameterization with options pointing to specific files, and a customer B which uses a different parameterization to other specific files. This allows you to switch from one to the other, quickly and easily, without having to manually modify the options of each tool.









To add a context, click on the

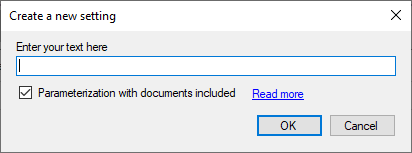

Add a context name :





Instead of choosing different locations for each setup file, all your files will be automatically grouped together in a single folder:


"C:\Users\[User name]\AppData\Local\Visiativ\MYCADTOOLS"



Advantages :

✓ Simplified organization: all your files in one place

✓ Coherence between different workstations

✓ Easy management of backups and transfers



Limitation :


[Set a warning icon] It will not be possible to change the location of parameter files in some tools.



The above action will therefore create a second setting

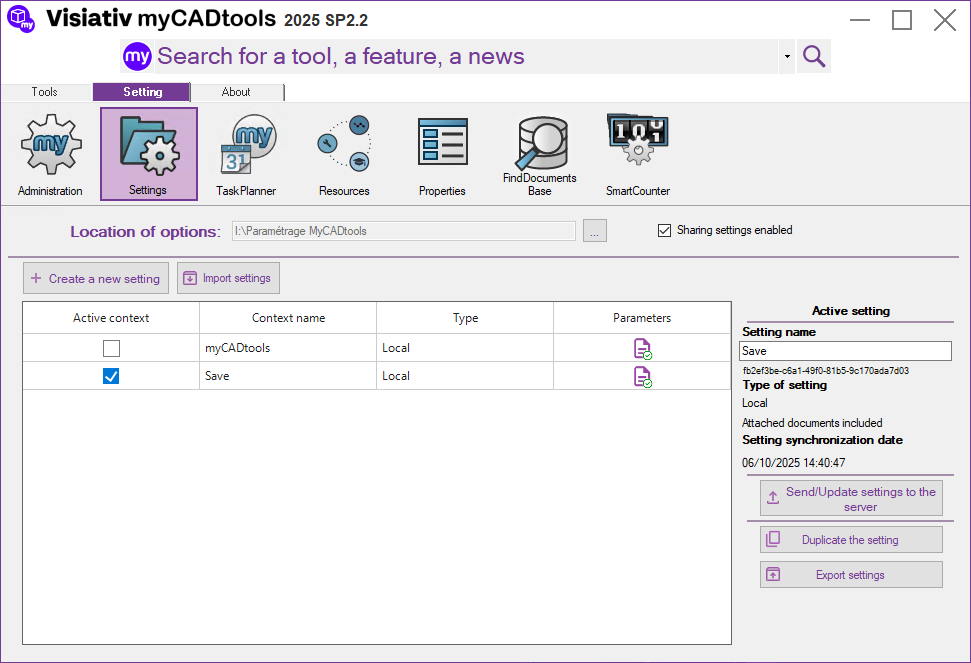

The column Active settings indicates the settings context currently in use, and allows you to switch to another context.

The active context is the one checked

To activate another context, check the desired context.



Use cases :
